MXR M169 CARBON COPY

MXR M169 CARBON COPY

$149.99 USD
$149.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

MXR CARBON COPY ANALOG DELAY

DESCRIPTION
• 100% analog bucket-brigade technology
• Up to 600ms of delay with switchable modulation
• Internally adjustable modulation circuit
• True bypass
• Push in the MOD switch to add modulation to your delay signal.
Modulation width and speed can be adjusted internally
(remove bottom plate) with a 3mm slotted screwdriver

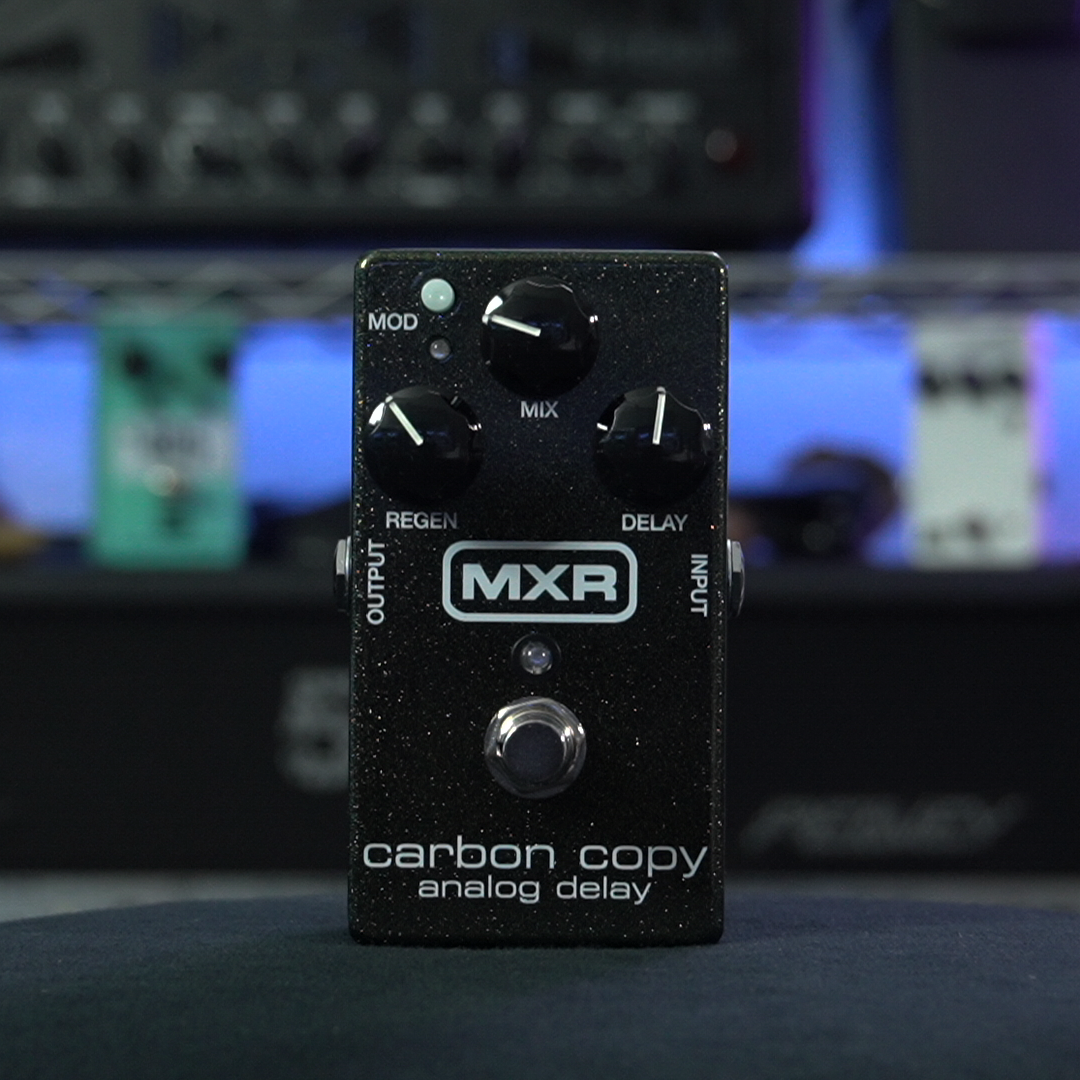

CONTROLS
MOD switch toggles modulation on/off (blue LED indicates on)
MIX knob controls blend of wet and dry signals
REGEN knob sets number of repeats

DELAY knob sets delay time

FOOTSWITCH toggles effect on/bypass (blue LED indicates on)

SPECIFICATIONS
Input Impedance 1 MΩ
Output Impedance 1 kΩ
Max Input Level +5 dBV, 500 Hz
Max Output Level +8 dBV Noise Floor*
Mix at Max CW -96 dBV
Mix at Max CCW -104 dBV
Delay Distortion <1%, 1 kHz, -5 dBV Input
Delay Time 20 ms to 600 ms
Noise Reduction 2:1 ratio
Modulation Speed 0.2 Hz to 2.2 Hz
Bypass True Hardwire
Current Draw 26 mA
Power Supply 9 volts DC
*Regen at max CCW, A-weighted

M169CBNCOP
