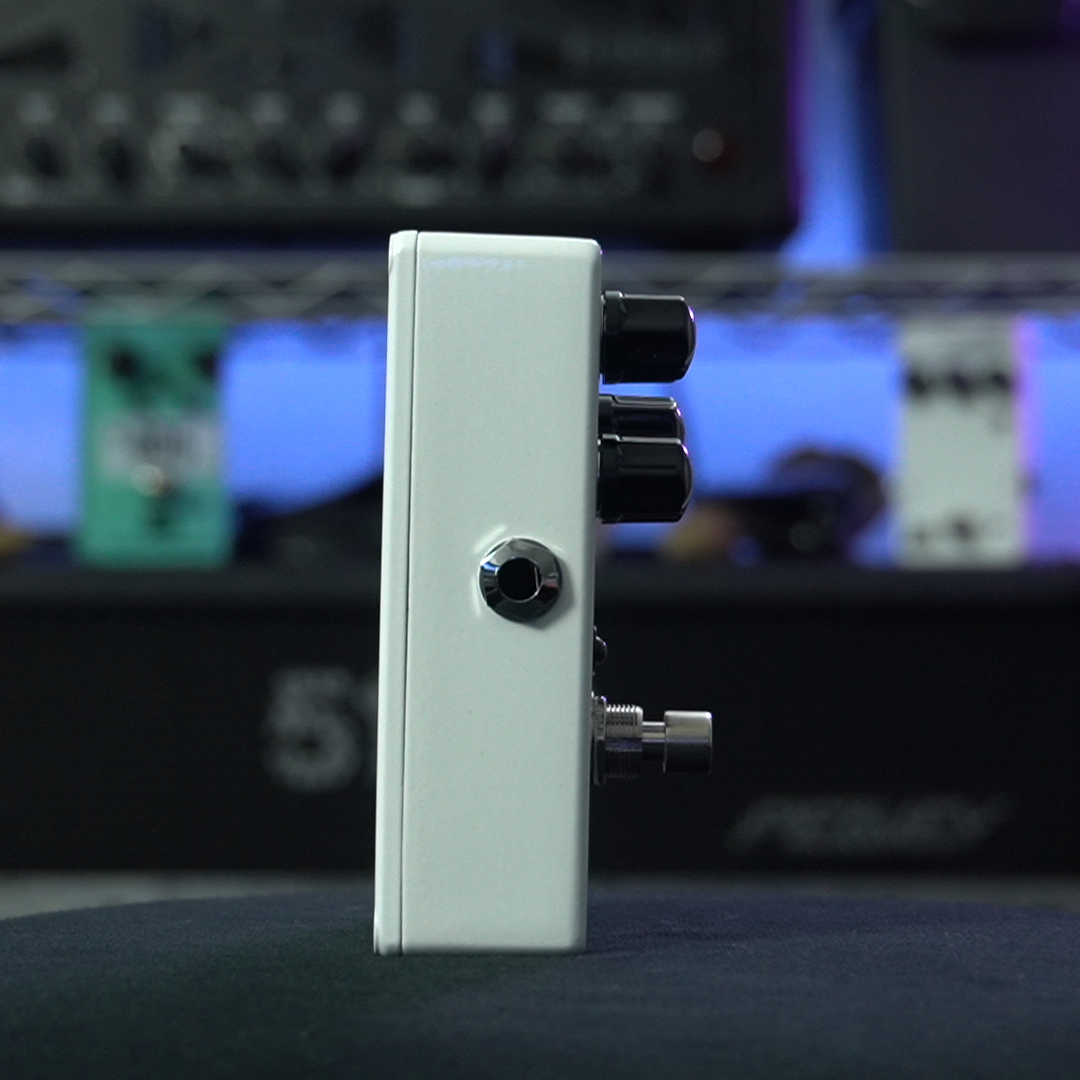

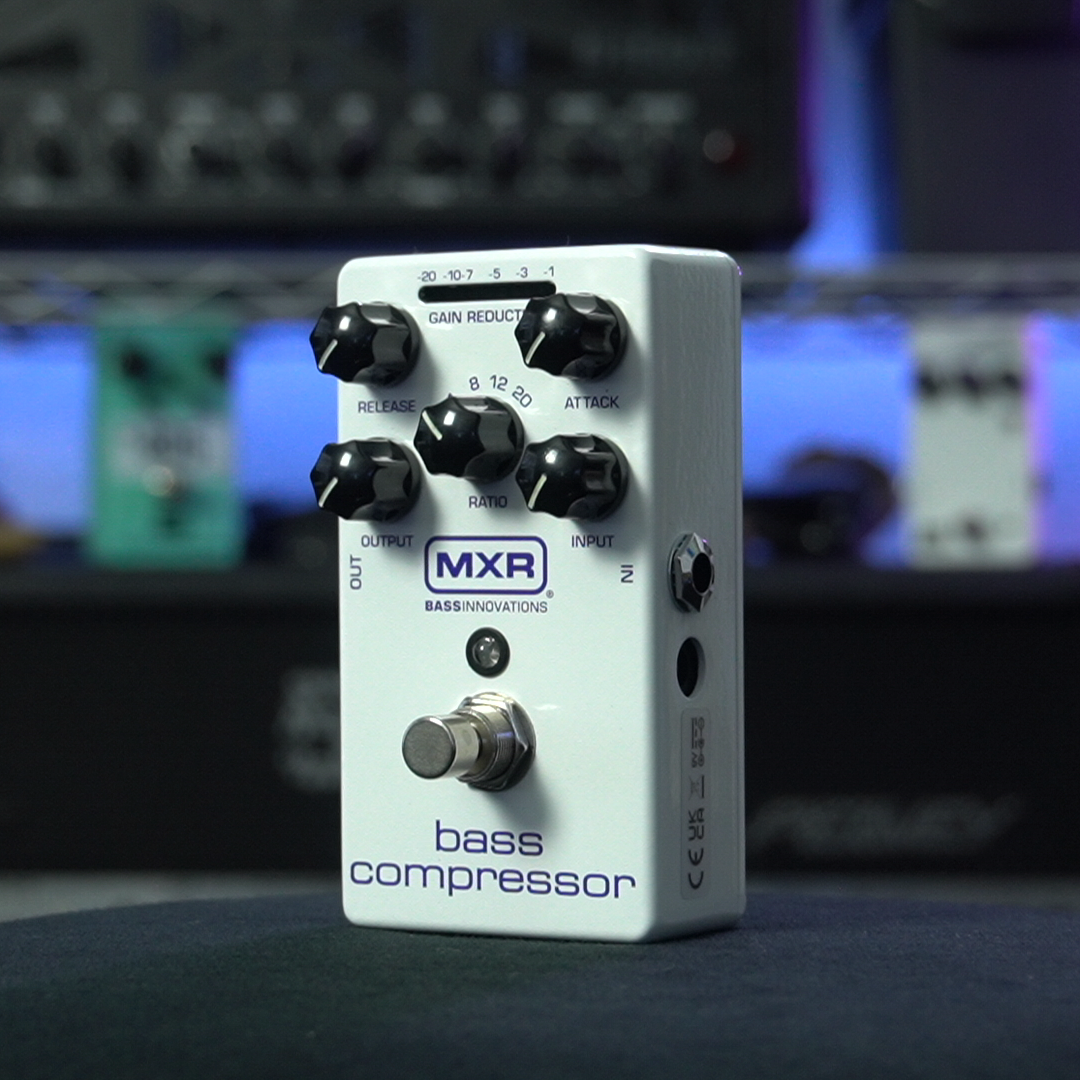

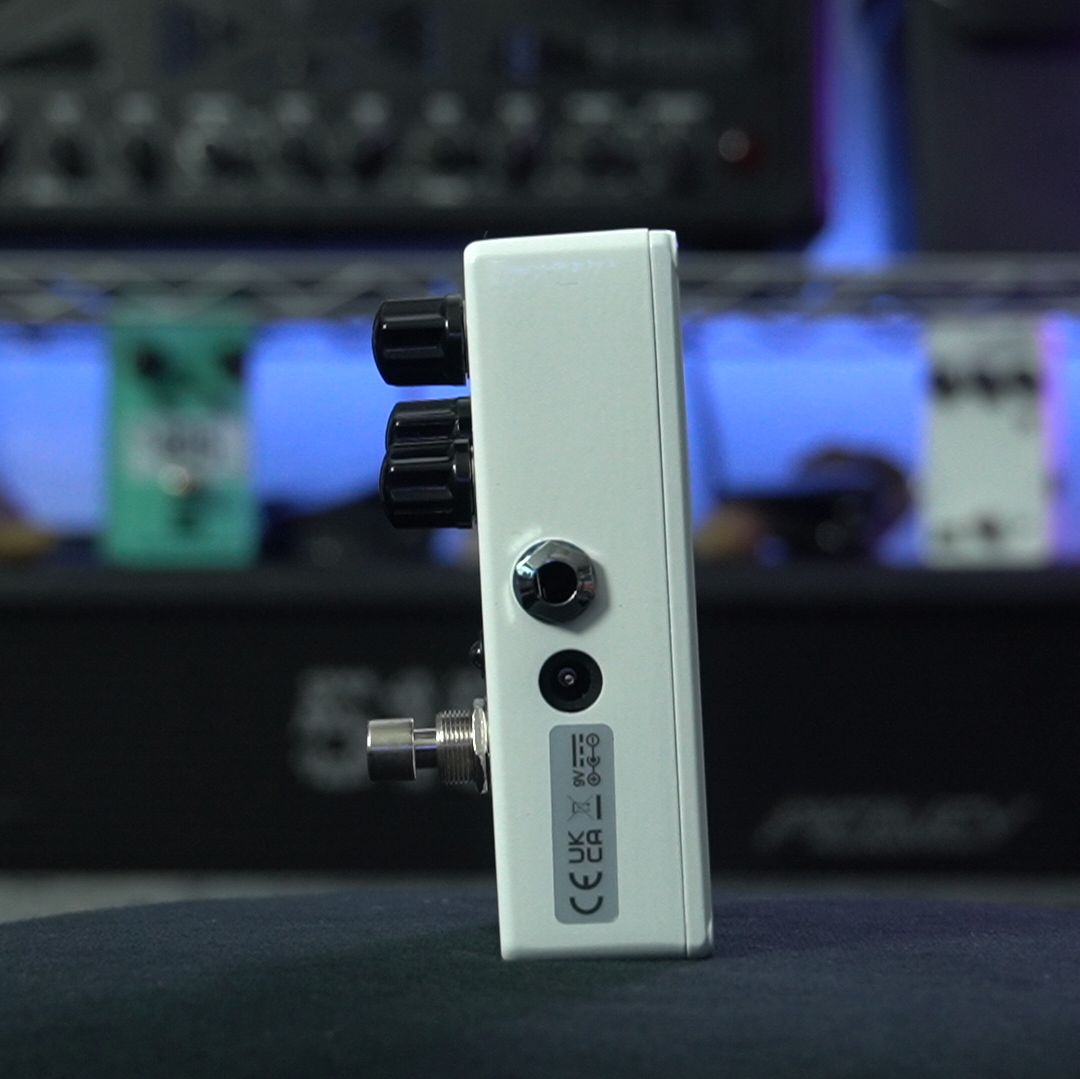

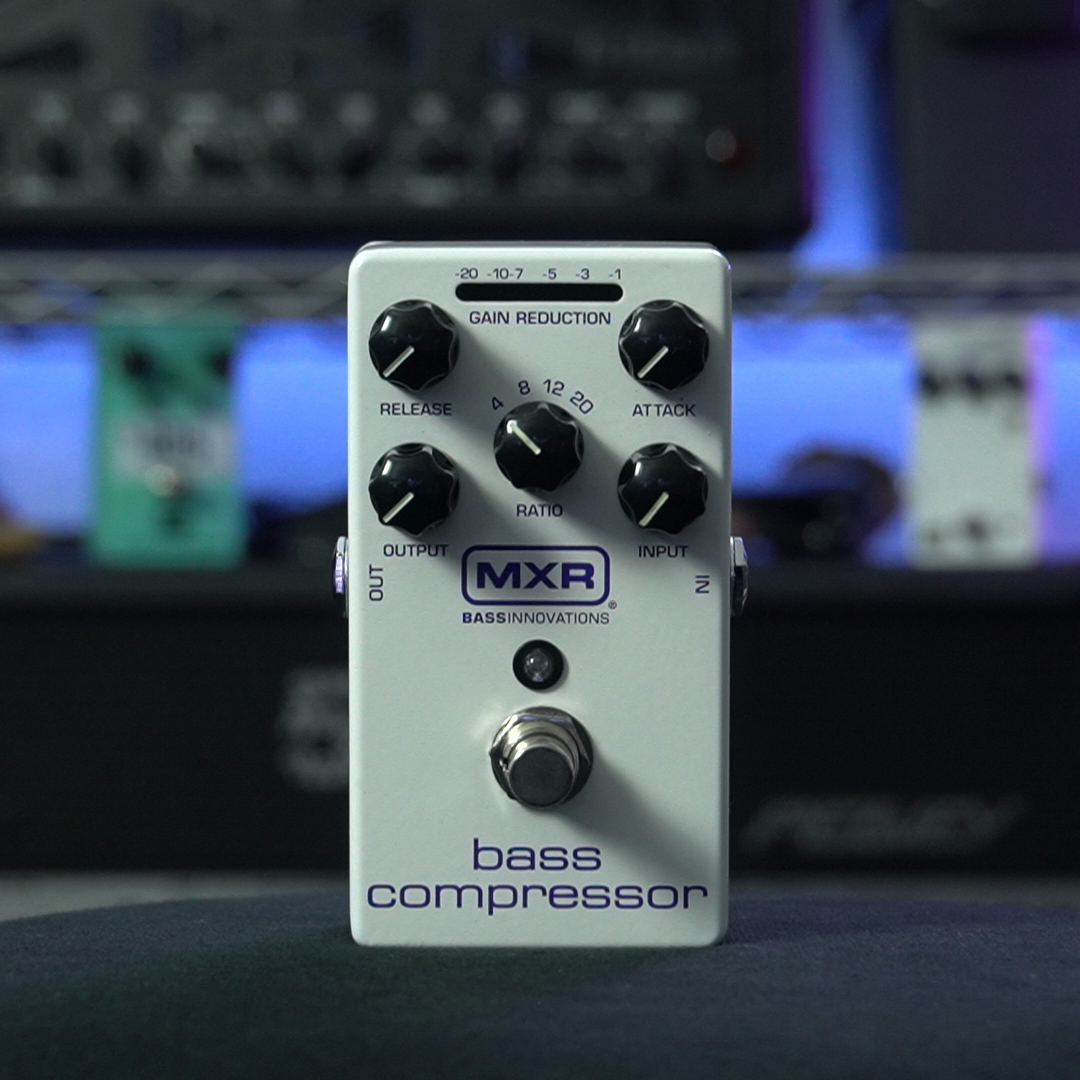

MXR M87 BASS COMPRESSOR

M87 BASS COMPRESSOR

DESCRIPTION
• Classic studio compressor in a Phase 90-sized pedal
• CHT™ Constant Headroom Technology for clear, clean performance
• Ten Gain Reduction status LEDs
• True bypass POWER

CONTROLS
METER display shows gain reduction level and compressor response time
RELEASE knob controls how
quickly your signal returns to its uncompressed gain level
ATTACK knob controls reaction time of compression
OUTPUT knob controls overall effect volume
RATIO sets the degree of compression, from mild 4 (4:1) to extreme 20 (20:1)
INPUT knob controls gain level of input signal FOOTSWITCH toggles effect on/bypass (blue LED indicates on)

SPECIFICATIONS
Input Impedance, 1 MΩ
Output Impedance, 600 Ω
Max Input Level, +14 dBV
Max Output Level, +8.5 dBV
Freq. Response, ±1 dB, 20 Hz to 20 kHz
Noise Floor*, -90 dBV
THD** > 0.5%
Gain, 31 dB
*A-Weighted, all controls at mid position
** 20 dB gain reduction, 1.1s release setting, 50 Hz to 20 kHz
